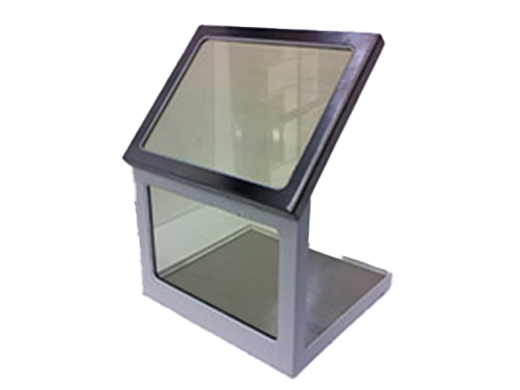

L-shaped lead barriers fitted with cantilevered lead glass window(s) to provide the user with an unobstructed view of the working area whilst still being fully protected. The lead glass window is angled at 45° to the vertical. Small size and light weight makes these barriers ideal for use in areas with limited space. The steel frame has a durable powder coating. The mini-barrier is available in three versions with varying degrees of shielding.
Material Specifications
- Lead: 6mm or 10mm BSEN12588
- Finish: powder coated white gloss
- Base and non-glazed vertical sections have a stainless steel working surface.
| Dimensions (mm) | Width | Height | Depth |
|---|---|---|---|
| Base section | 260 | 230 | |
| Vertical section | 260 | 185 | |
| Window section | 220 | 160 | |
| Overall height | 264 | 360 | 272 |
| OTHER SIZES AVAILABLE ON REQUEST | |||
| Code | Description | weight (kg) |
|---|---|---|
| 5BT-BVB6 | Mini viewing barrier with 6mm lead shielding and 6mm lead glass window (2mm lead equivalence) | 14.6 |
| 5BT-BVB10 | Mini viewing barrier with 10mm lead shielding and 12mm lead glass window (3.5mm lead equivalence) | 20.7 |
| 5BT-BVB10W | Mini viewing barrier with 10mm lead shield and two 12mm lead glass windows, one in cantilevered section and one in vertical front section | 18 |
| 5BT-BVBSST | Removable stainless steel tray | |
| 5BT-BVBNSS | Mini viewing barrier custom size |
